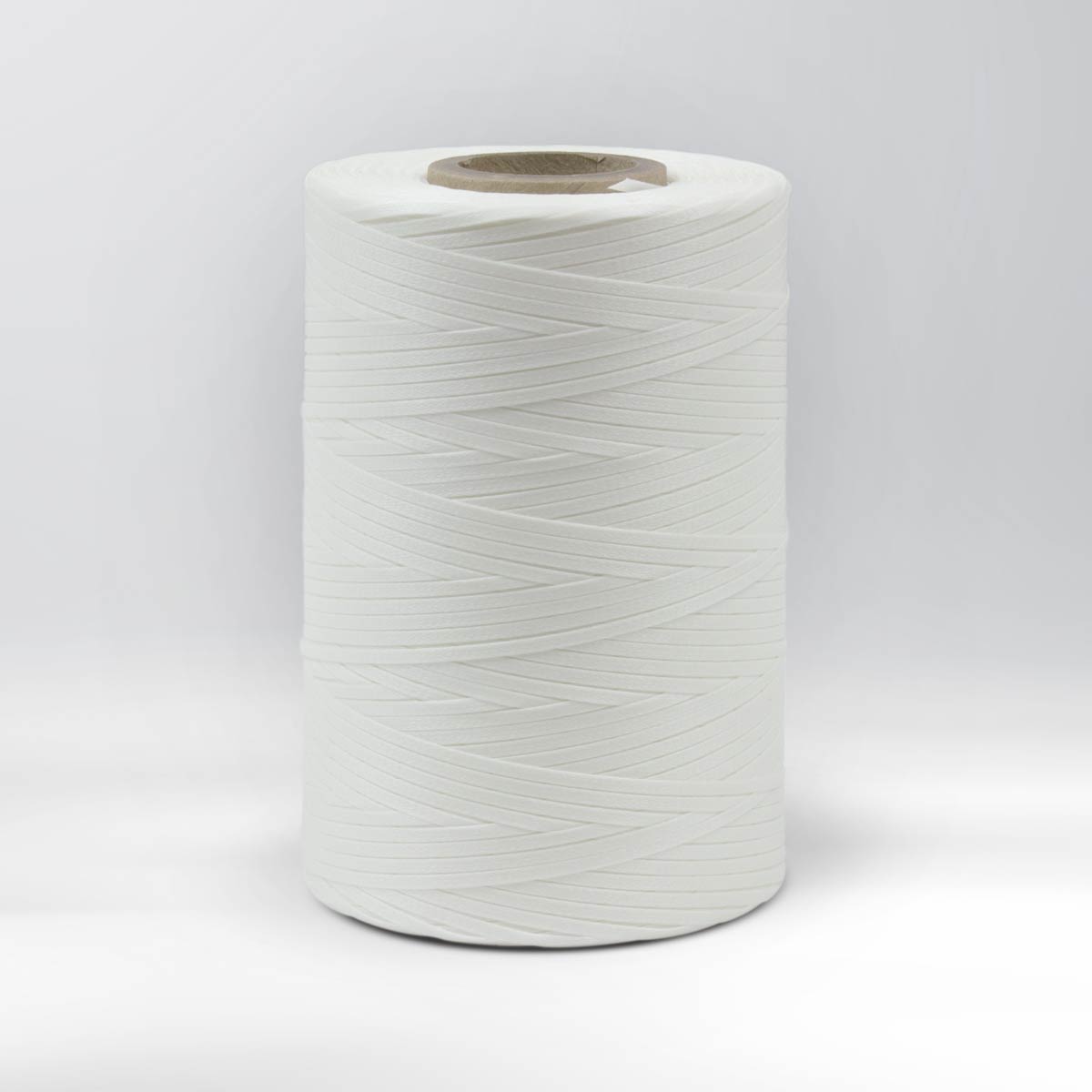

Nomex Stator Lacing Tape
Flat braided tape manufactured from continuous filament Nomex® aramid yarn.
Description: This tape was designed for lacing end turns of Class H electric motor stators. Specially formulated finish reduces fraying and improves knot holding characteristics. Also available without finish. Covered by Breyden Products' UL tested sample BPCCT180.
Colors: Natural
Temperature Range: To 220°C
Nomex Stator Lacing Tape
Flat braided tape manufactured from continuous filament Nomex® aramid yarn.
Description: This tape was designed for lacing end turns of Class H electric motor stators. Specially formulated finish reduces fraying and improves knot holding characteristics. Also available without finish. Covered by Breyden Products' UL tested sample BPCCT180.
Colors: Natural
Temperature Range: To 220°C
| No Coating | With Coating | |
|---|---|---|
| 0.500" x 0.028" * | 5500-1 Natural Click for Data Sheet |
5500 Natural Click for Data Sheet |
| 0.350" x 0.020" * | 5350-1 Natural Click for Data Sheet |
5350 Natural Click for Data Sheet |
| 0.200" x 0.016" * | 5200-1 Natural Click for Data Sheet |
5200 Natural Click for Data Sheet |
| 0.110" x 0.014" * | 5100-1 Natural Click for Data Sheet |
5100 Natural Click for Data Sheet |
| 0.075" x 0.012" * | 5070-1 Natural Click for Data Sheet |
5070 Natural Click for Data Sheet |
*Dimensions listed are nominal. See Data Sheets for tolerances.
