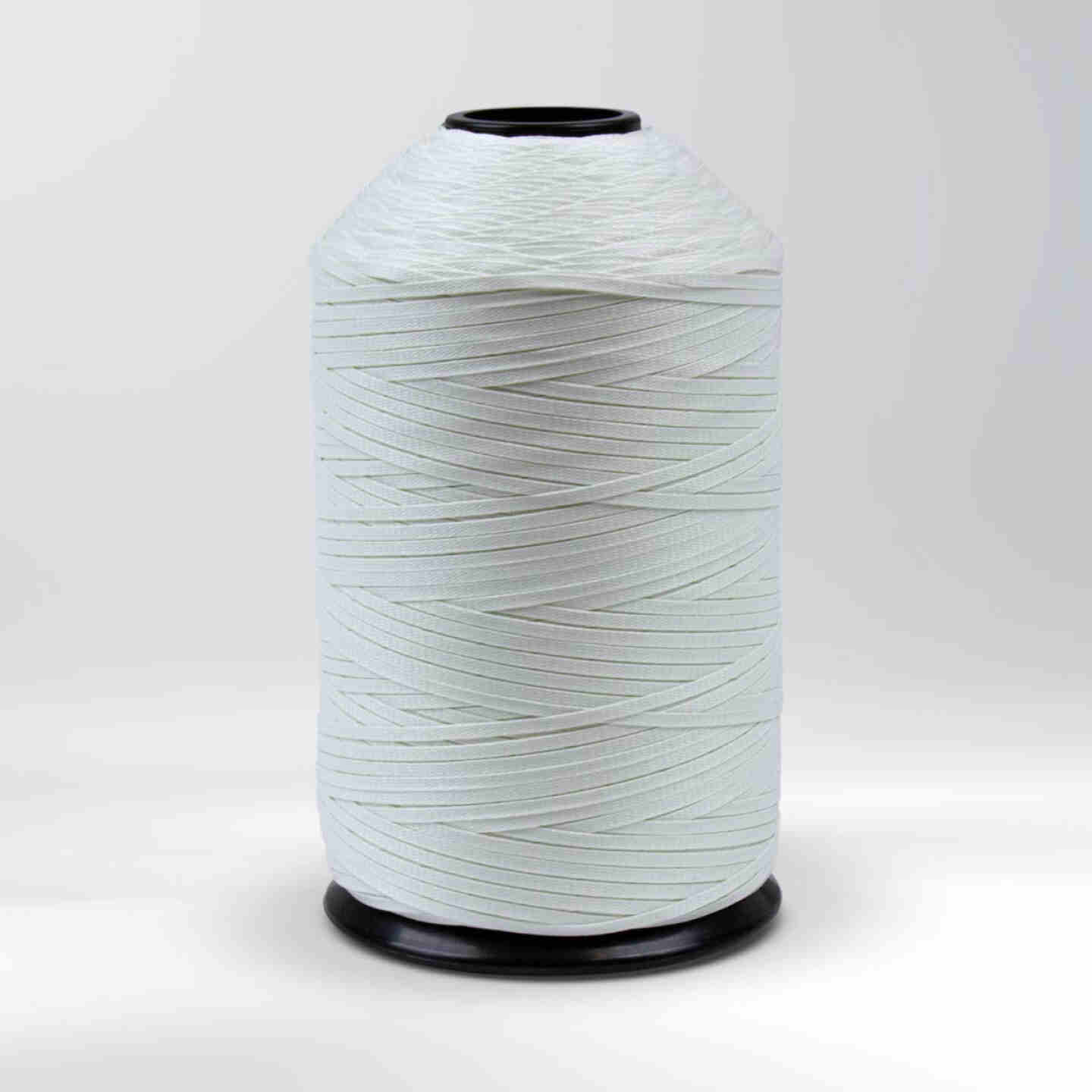

Low Outgassing Lacing Tape A-A-52083
Formerly Mil-T-43435 Type IV
Flat braid manufactured from continuous filament Glass yarn coated with Teflon before braiding. Available with a synthetic elastomer finish.
NOTE: This material meets the requirements of a maximum 1% total mass loss (TML) and 0.10% collected volatile condensible materials (CVCM) as set forth in ASTM-E595.
Standard Colors: Natural
Temperature Range: Glass maintains strength and is stable at 800°F (427°C)
Low Outgassing Lacing Tape A-A-52083
Formerly Mil-T-43435 Type IV
Flat braid manufactured from continuous filament Glass yarn coated with Teflon before braiding. Available with a synthetic elastomer finish.
NOTE: This material meets the requirements of a maximum 1% total mass loss (TML) and 0.10% collected volatile condensible materials (CVCM) as set forth in ASTM-E595.
Standard Colors: Natural
Temperature Range: Glass maintains strength and is stable at 800°F (427°C)
| Finish C Syn Rubber/Elastomer | |
|---|---|
| Size 1 0.226" x 0.016" * |
401-3 LOG A-A-52083-C-1 Click for Data Sheet |
| Size 2 0.110" x 0.016" * |
402-3 LOG A-A-52083-C-2 Click for Data Sheet |
| Size 3 0.086" x 0.016* |
403-3 LOG A-A-52083-C-3 Click for Data Sheet |
| Size 4 0.060" x 0.016" * |
404-3 LOG A-A-52083-C-4 Click for Data Sheet |
| Size 5 0.050" x 0.016" * |
405-3 LOG A-A-52083-C-5 Click for Data Sheet |
*Dimensions listed are nominal. See Data Sheets for tolerances.
