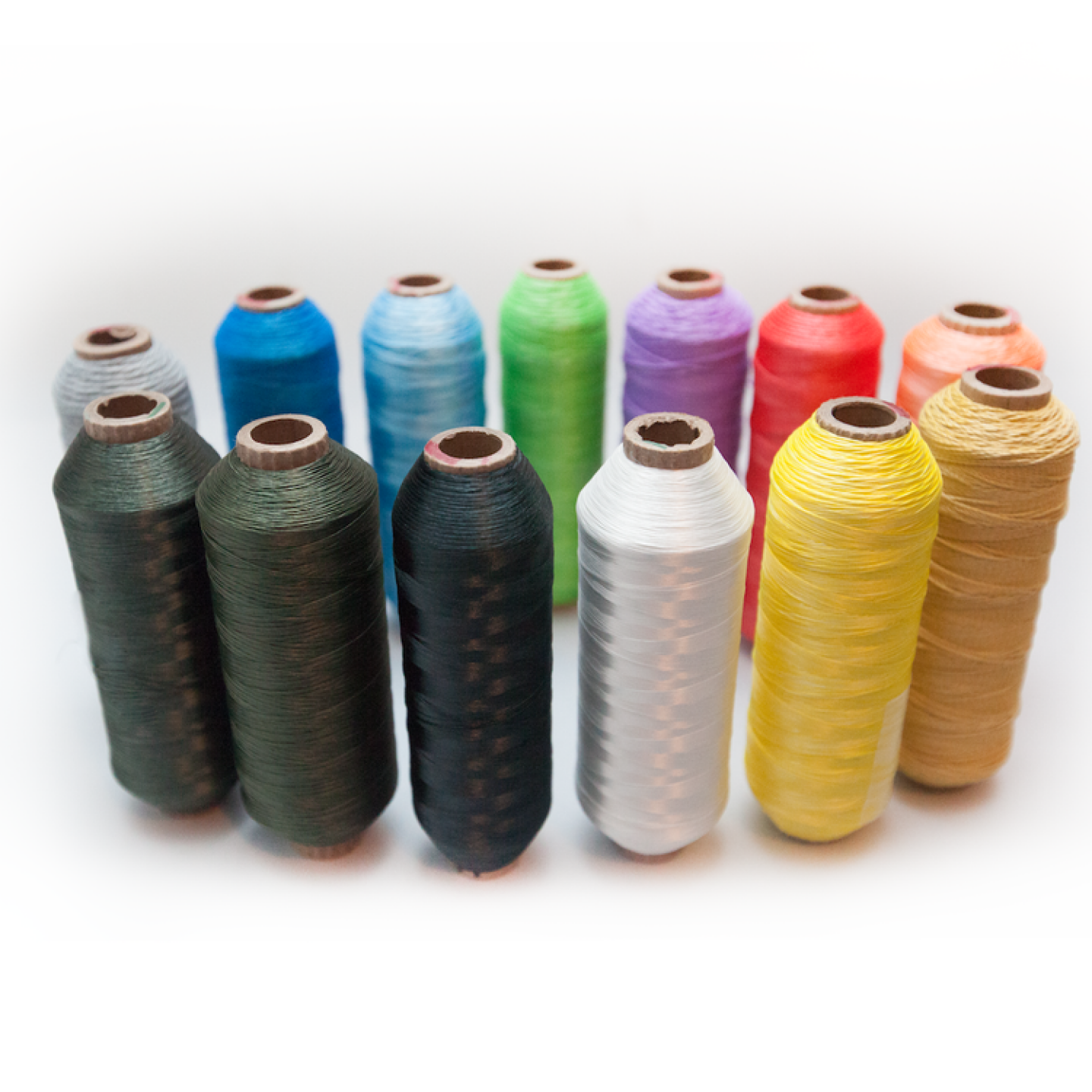

Nomex Braiding Yarn Mil-PRF-572 Type PAA Form Y
Continuous Filament Nomex® yarn twisted to form an essentially round bundle.
Description: Material is available unbonded or bonded with a non-corrosive liquid nylon finish. Material is packaged on cardboard tubes or plastic ratchet bobbins for use on New England Butt #2 braiding machines. Other packages also available.
Standard Colors: Natural (off white) or Camouflage Green (Other colors are available in bond dyed form or with unbonded yarn in minimum dye lots)
Temperature Range: -55°C to 260°C
Nomex Braiding Yarn Mil-PRF-572 Type PAA Form Y
Continuous Filament Nomex® yarn twisted to form an essentially round bundle.
Description: Material is available unbonded or bonded with a non-corrosive liquid nylon finish. Material is packaged on cardboard tubes or plastic ratchet bobbins for use on New England Butt #2 braiding machines. Other packages also available.
Standard Colors: Natural (off white) or Camouflage Green (Other colors are available in bond dyed form or with unbonded yarn in minimum dye lots)
Temperature Range: -55°C to 260°C
Yarn Size: 200 Denier
| Nominal Diameter .002" | Breaking Strength 2.5lbs | Feet Per Bobbin Single End 15,000ft |
Yarn Size: 1200 Denier
| Nominal Diameter .006" | Breaking Strength 13lbs | Feet Per Bobbin Single End 3,000ft |
